Flat plate solar water heater systems are one of the most dependable and cost-effective solar hot water solutions for residential and commercial use. They are widely installed in homes, apartments, hotels, hospitals, schools, and lodges due to their durability, efficiency, and long service life, especially in sunny climates like Kenya.
Table of Contents
What Is a Flat Plate Solar Water Heater?
A flat plate solar water heater is a solar thermal system that uses a flat, rectangular collector to absorb sunlight and convert it into heat for warming water. The heated water is stored in an insulated tank for later use.
Flat plate systems are known for their robust construction, low maintenance, and ability to handle large volumes of hot water, making them suitable for both domestic and commercial installations.
How a Flat Plate Solar Water Heater Works

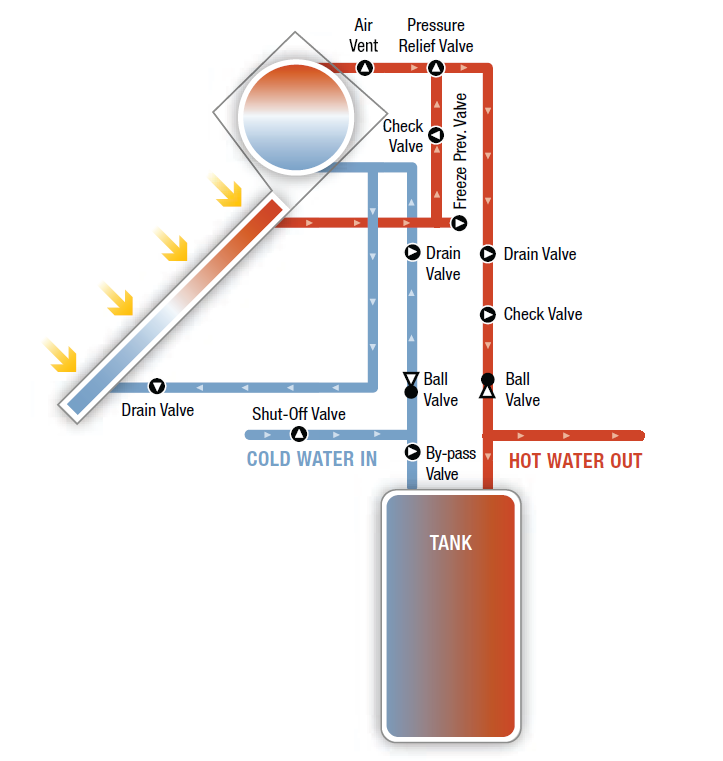

Flat plate solar water heaters work using natural heat circulation (thermosiphon):
- Sunlight passes through the toughened glass cover
- The absorber plate converts solar energy into heat
- Copper tubes transfer heat to the water
- Hot water rises into the insulated storage tank
- Cooler water flows back to the collector for reheating
This cycle continues throughout the day, ensuring a reliable supply of hot water.

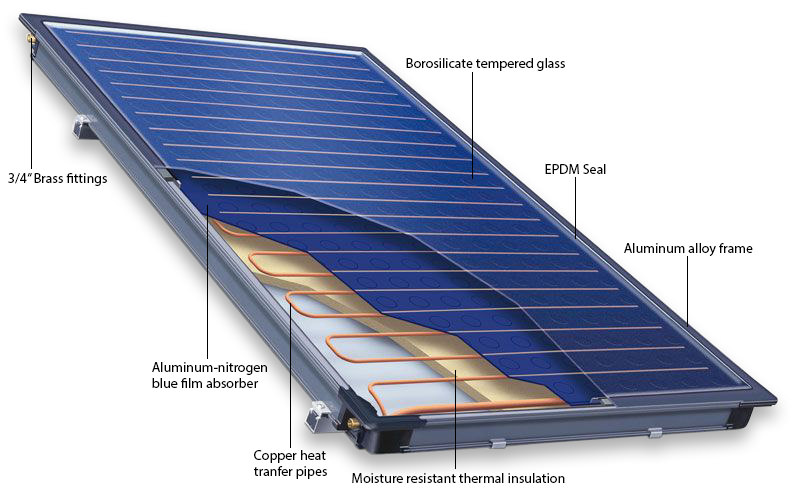

Main Components of a Flat Plate Solar Water Heater
- Flat Plate Collector – Absorbs solar radiation
- Selective Absorber Plate – High heat absorption, low heat loss
- Copper Tubing – Efficient thermal conductivity
- Toughened Glass Cover – Protection and insulation
- Hot Water Storage Tank – Keeps water hot for extended periods
- Mounting Frame – Correct tilt and structural support
- Electric Backup Heater (optional) – For cloudy days or peak demand
Key Benefits of Flat Plate Solar Water Heater Systems
✔ Reduced Energy Bills
Saves up to 70–80% on electricity or gas used for water heating.
✔ Long Lifespan
With proper maintenance, flat plate systems last 20–25 years.
✔ Weather Resistant
Designed to withstand high temperatures, rain, wind, and dust, ideal for Kenyan conditions.
✔ Low Maintenance
No moving parts means fewer breakdowns and minimal servicing.
✔ Environmentally Friendly
Reduces carbon emissions and reliance on fossil fuels.
Flat Plate vs Evacuated Tube Solar Water Heaters
| Feature | Flat Plate System | Evacuated Tube System |
| Durability | Very high | Moderate |
| Maintenance | Low | Moderate |
| Performance in hot climates | Excellent | Very good |
| Impact resistance | Strong | Fragile tubes |
| Best use | Homes & commercial buildings | Cold regions |
Flat plate systems are often preferred for urban homes, hotels, and institutions.
Flat Plate Solar Water Heater Capacity Guide
| Capacity | Recommended Use |
| 100 Litres | 1–2 people |
| 150 Litres | 2–3 people |
| 200 Litres | 3–4 people |
| 300 Litres | Large families, hotels, salons |
| 500L+ | Commercial & institutional use |

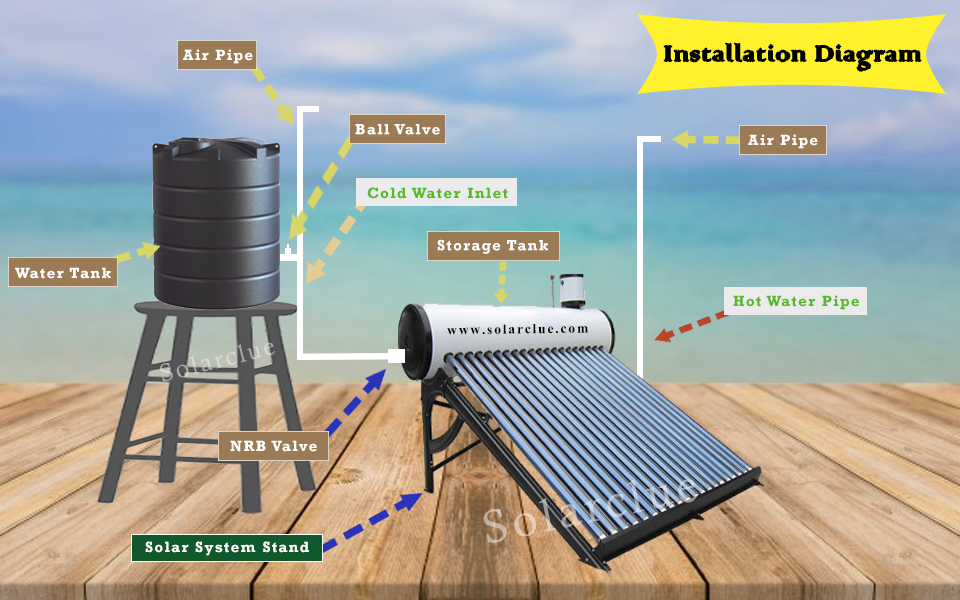

Installation Considerations
To maximise performance and lifespan:
- Roof should face south for optimal sun exposure
- Correct tilt angle (15–30°) depending on location
- Strong roof structure to support tank weight
- Short pipe runs to reduce heat loss
- Hard water areas may need periodic descaling
Professional installation ensures safety, efficiency, and warranty protection.
Ideal Applications
- Residential homes & apartments
- Hotels, lodges & Airbnbs
- Hospitals & healthcare facilities
- Schools & boarding institutions
- Commercial kitchens & laundries
Why Flat Plate Solar Water Heaters Are Ideal for Kenya
Kenya enjoys high solar irradiance throughout the year, making flat plate solar water heaters extremely efficient. Rising electricity costs and frequent power outages further increase their value.
They perform reliably in urban and rural areas, offering fast return on investment and long-term savings.
Frequently Asked Questions
Are flat plate solar water heaters suitable for cloudy days?
Yes. They store hot water in insulated tanks and can be fitted with electric backups for continuous supply.
How long does installation take?
Typically 1 day for residential systems and 2–3 days for large commercial setups.
Do flat plate systems require maintenance?
Minimal maintenance is required—mainly cleaning the glass and checking pipes annually.
Can flat plate solar heaters work with existing plumbing?
Yes. They can be integrated into most standard plumbing systems.
Conclusion
Flat plate solar water heater systems offer a durable, efficient, and eco-friendly solution for hot water needs. Their strong performance in sunny climates, low maintenance requirements, and long lifespan make them a smart investment for homes and businesses in Kenya.
