Description
Overview

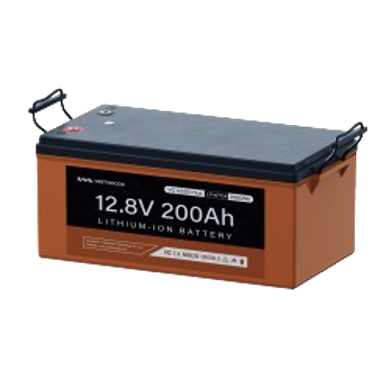

The VC12200 doubles the VC12100’s capacity to 2.56kWh while maintaining the same IP65 outdoor rating, 300A peak discharge, and drop-in lead-acid compatibility. At 22.9kg, it weighs roughly one-third of an equivalent 12V 200Ah lead-acid battery (typically 60-65kg), making it a transformative upgrade for RVs, boats, and off-grid installations.
Key Specifications
| Model | VC12200 |
| Nominal Energy | 2,560Wh (2.56kWh) |
| Nominal Capacity | 200Ah |
| Nominal Voltage | 12.8V |
| Operating Voltage | 10.8 – 14.6V |
| Max Continuous Discharge | 100A |
| Peak Discharge | 300A (3 seconds) |
| Max Configuration | Up to 4 units in parallel or series |
| Dimensions | 520 × 220 × 270mm |
| Weight | 22.9 kg |
| IP Rating | IP65 |
| Cycle Life | 4,500+ cycles @ 80% DoD |
| Warranty | 3 years |
What It Can Power
With ~2kWh usable (80% DoD): LED lighting for a small home for 15+ hours, a fridge for 12-16 hours, a 43″ TV for 8-10 hours, or a CPAP machine for 3-4 nights. Two units in parallel (5.12kWh) provide genuine overnight whole-house backup on a 12V platform.
Weight Advantage
At 22.9kg vs 60-65kg for a lead-acid equivalent, the VC12200 saves roughly 40kg per battery. For RV and marine applications, this weight reduction improves fuel efficiency and handling. For roof-mounted installations, it dramatically reduces structural load requirements.
