Description
Overview

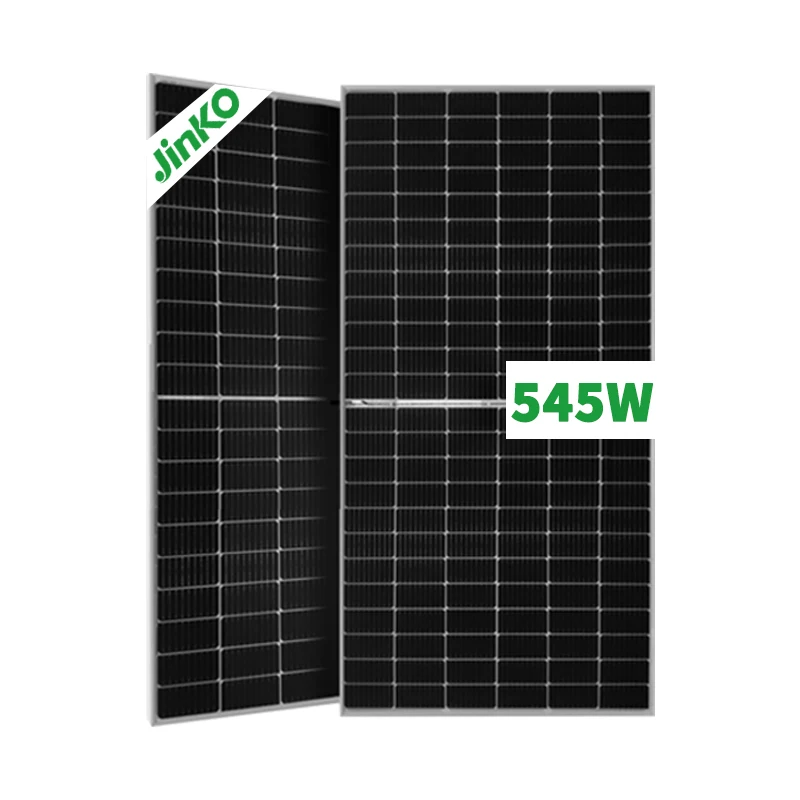

The Jinko 545W Tiger Pro Mono PERC Solar Panel (JKM545M-72HL4) is the budget entry point to Jinko’s 500W+ range. It uses the same proven P-type Mono PERC technology as the 550W Tiger Pro but at a slightly lower power bin — saving buyers KSh 100 per panel while delivering 99% of the same performance.
Key Specifications
| Model | JKM545M-72HL4 |
| Series | Tiger Pro |
| Maximum Power | 545W |
| Module Efficiency | Up to 21.1% |
| Cell Type | P-Type Mono PERC |
| Number of Cells | 144 (72×2 half-cut) |
| Voc | ~49.58V |
| Isc | ~13.89A |
| Temp Coefficient (Pmax) | -0.35%/°C |
| Dimensions | 2,278 × 1,134 × 35mm |
| Weight | ~28.9 kg |
| Certifications | IEC 61215, IEC 61730, CE |
| Product Warranty | 12 years |
| Performance Warranty | 25 years linear |
What It Powers in Kenya
- 4 panels (2.18kW): 1-2 bedroom home — lighting, TV, fridge, phones
- 6 panels (3.27kW): Standard 3-bedroom home
- 8 panels (4.36kW): Large home or small business
- 10 panels (5.45kW): Full commercial coverage
Compatible Inverters
- Deye, Growatt, Sunsynk, Vestwood (6kW, 10kW, 15kW, 20kW)
- Goodwe, Victron, Luxpower, SRNE, Solis, Must
