Description
A Short Rail for Jobs Where a Full Rail Is Too Long
The solar mini rail is simply a 300mm segment of the same aluminium mounting rail profile used in full-length installations. It carries the identical Al6005-T5 alloy, the same anodised finish, and the same cross-section that accepts standard clamps and T-slot fittings — just at a compact length suited to small mounting tasks rather than full panel arrays. Where a standard installation uses 4.4m or 4.8m rails to span rows of panels, the mini rail handles the jobs those long rails would be wasteful or awkward for.
The most common reason installers reach for a mini rail rather than cutting down a full-length rail: clean factory-finished ends. When you saw a long rail to length on-site, you expose a raw aluminium cut edge that needs filing and sealing to prevent moisture creeping into the cut, and you generate offcut waste. A purpose-made 300mm mini rail arrives with both ends factory-anodised and clean, ready to install with no cutting, no filing, no sealing, and no waste.
What Mini Rails Are Actually Used For
The 300mm length suits a specific set of small mounting tasks that come up regularly in Kenyan solar work:
- Single-panel mounts: A lone solar panel — powering a gate motor, a borehole pump controller, a single security light, or a small off-grid load — needs only a short rail at top and bottom rather than a full-length span.
- Solar water-heater PV panels: The small photovoltaic panel that powers a solar water heater’s circulation pump mounts neatly on a pair of mini rails.
- CCTV and security-light panels: The compact panels feeding security cameras and standalone lights are far smaller than rooftop array panels and need only short rail segments.
- Compact bracket-mount jobs: Wall-mounted or pole-mounted single panels where a full rail would overhang awkwardly.
- Tight roof spans: A narrow roof section — between a chimney and a valley, or on a small outbuilding — sometimes has only 300-400mm of usable mounting width.
- Repair and extension work: Adding a single panel to an existing array, or replacing a damaged short rail section, without re-railing the whole row.
- Test rigs and demonstration mounts: Training setups, showroom displays, and panel test benches where a compact rail is more practical than a full one.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CP-NRA-300 |
| Length | 300mm (0.3 metres) |
| Material | Aluminium alloy Al6005-T5 (extruded, age-hardened) |
| Tensile Strength | 260 MPa typical |
| Cross-Section Profile | Standard solar rail profile with internal T-channel (same as full-length rails) |
| Finish | Clean anodised silver, both ends factory-finished |
| Compatible Clamps | 30mm, 35mm, and 40mm mid clamps and end clamps |
| Compatible Fittings | T-bolts, tilt-in nuts, end stops — all standard rail accessories |
| Weight | Approximately 420g per 300mm segment |
| Operating Temperature | -40°C to +90°C |
| Corrosion Resistance | Inland and coastal-suitable (anodised Al6005-T5) |
| Service Life | 25+ years matching standard solar panel warranty periods |
Mini Rail vs Cutting a Full Rail — Which Makes Sense?
| Consideration | Buy a 300mm Mini Rail | Cut a Full Rail to Length |
|---|---|---|
| End finish | Both ends factory-anodised, clean | Cut end is raw aluminium, needs filing and sealing |
| Waste | None | Offcut waste (often unusable) |
| Tools needed | None | Hacksaw or aluminium cutting blade, file |
| Time | Ready to install | Measure, cut, file, seal |
| Best when | You need a few short segments and want them clean | You already have full-rail offcuts on hand and the cut end isn’t weather-exposed |
For one-off small jobs and any installation where the rail ends will be weather-exposed, the purpose-made mini rail is the cleaner choice. For installers with leftover full-rail offcuts from a larger job, cutting to length can make sense provided the cut end is properly finished and sealed.
Cross-Sell: Components That Work With Mini Rails
- Full-length rails for larger arrays: Our 4800mm rail (industry standard) and 4400mm rail (niche-fit) for multi-panel rows
- Mid clamps: 30mm, 35mm, and 40mm profiles for securing panels to the rail

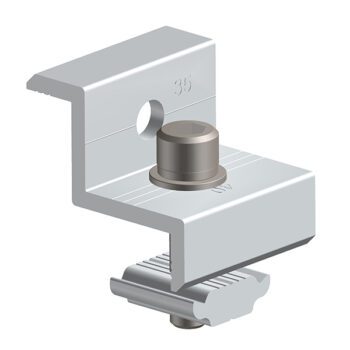

- End clamps: 33mm and 40mm profiles for terminating panel edges
- Roof anchors: Our solar L-foot screw kit for attaching mini rails to the roof
- Rail splices: Our CP-RS-A rail splice if you need to join rail segments
- Project planning: Use our solar calculator for a full bill of materials, or request a quote for bulk orders
